Unstructured tet mesh based on output from Tetgen: http://wias-berlin.de/software/tetgen/. More...

#include <tetgen_mesh.h>

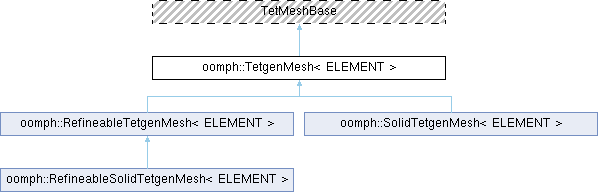

Inheritance diagram for oomph::TetgenMesh< ELEMENT >:

Public Member Functions
	TetgenMesh ()
	Empty constructor.

	TetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with the input files.

	TetgenMesh (tetgenio &tetgen_data, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with tetgenio data structure.

	TetgenMesh (const std::string &node_file_name, const std::string &element_file_name, const std::string &face_file_name, const bool &split_corner_elements, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with the input files. Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution.

	TetgenMesh (tetgenio &tetgen_data, const bool &split_corner_elements, TimeStepper *time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false)
	Constructor with tetgen data structure Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution.

	TetgenMesh (TetMeshFacetedClosedSurface const &outer_boundary_pt, Vector< TetMeshFacetedSurface > &internal_surface_pt, const double &element_volume, TimeStepper time_stepper_pt=&Mesh::Default_TimeStepper, const bool &use_attributes=false, const bool &split_corner_elements=false, Vector< double > const &target_element_volume_in_region_pt=nullptr)
	Build mesh, based on a TetgenMeshFactedClosedSurface that specifies the outer boundary of the domain and any number of internal boundaries, specified by TetMeshFacetedSurfaces. Also specify target size for uniform element size. Optionally specify the target element volume in each region.

void	build_tetgenio (TetMeshFacetedSurface const &outer_boundary_pt, Vector< TetMeshFacetedSurface > &internal_surface_pt, Vector< double > *const &target_element_volume_in_region_pt, tetgenio &tetgen_io)
	Build tetgenio object from the TetMeshFacetedSurfaces.

	~TetgenMesh ()
	Empty destructor.

void	set_mesh_level_time_stepper (TimeStepper *const &time_stepper_pt, const bool &preserve_existing_data)
	Overload set_mesh_level_time_stepper so that the stored time stepper now corresponds to the new timestepper.

bool	tetgenio_exists () const
	Boolen defining whether tetgenio object has been built or not.

tetgenio *&	tetgenio_pt ()
	Access to the triangulateio representation of the mesh.

void	set_deep_copy_tetgenio_pt (tetgenio *const &tetgenio_pt)
	Set the tetgen pointer by a deep copy.

void	deep_copy_of_tetgenio (tetgenio const &input_pt, tetgenio &output_pt)
	Transfer tetgenio data from the input to the output The output is assumed to have been constructed and "empty".

Protected Member Functions
void	build_from_scaffold (TimeStepper *time_stepper_pt, const bool &use_attributes)
	Build mesh from scaffold.

void	setup_reverse_lookup_schemes_for_faceted_surface (TetMeshFacetedSurface *const &faceted_surface_pt)
	Function to setup the reverse look-up schemes.

Protected Attributes
TetgenScaffoldMesh *	Tmp_mesh_pt
	Temporary scaffold mesh.

bool	Tetgenio_exists
	Boolean to indicate whether a tetgenio representation of the mesh exists.

tetgenio *	Tetgenio_pt
	Tetgen representation of mesh.

bool	Use_attributes
	Boolean flag to indicate whether to use attributes or not (required for multidomain meshes)

Detailed Description

template<class ELEMENT>
class oomph::TetgenMesh< ELEMENT >

Unstructured tet mesh based on output from Tetgen: http://wias-berlin.de/software/tetgen/.

Definition at line 50 of file tetgen_mesh.h.

Constructor & Destructor Documentation

◆ TetgenMesh() [1/6]

template<class ELEMENT >

oomph::TetgenMesh< ELEMENT >::TetgenMesh ( )

inline

Empty constructor.

Definition at line 54 of file tetgen_mesh.h.

◆ TetgenMesh() [2/6]

template<class ELEMENT >

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	const std::string &	node_file_name,
		const std::string &	element_file_name,
		const std::string &	face_file_name,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with the input files.

Definition at line 61 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [3/6]

template<class ELEMENT >

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	tetgenio &	tetgen_data,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with tetgenio data structure.

Definition at line 99 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [4/6]

template<class ELEMENT >

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	const std::string &	node_file_name,
		const std::string &	element_file_name,
		const std::string &	face_file_name,
		const bool &	split_corner_elements,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with the input files. Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution.

Definition at line 146 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [5/6]

template<class ELEMENT >

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	tetgenio &	tetgen_data,
		const bool &	split_corner_elements,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`
	)

inline

Constructor with tetgen data structure Setting the boolean flag to true splits "corner" elements, i.e. elements that that have at least three faces on a domain boundary. The relevant elements are split without introducing hanging nodes so the sons have a "worse" shape than their fathers. However, this step avoids otherwise-hard-to-diagnose problems in fluids problems where the application of boundary conditions at such "corner" elements can overconstrain the solution.

Definition at line 202 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ TetgenMesh() [6/6]

template<class ELEMENT >

oomph::TetgenMesh< ELEMENT >::TetgenMesh	(	TetMeshFacetedClosedSurface *const &	outer_boundary_pt,
		Vector< TetMeshFacetedSurface * > &	internal_surface_pt,
		const double &	element_volume,
		TimeStepper *	time_stepper_pt = `&Mesh::Default_TimeStepper`,
		const bool &	use_attributes = `false`,
		const bool &	split_corner_elements = `false`,
		Vector< double > *const &	target_element_volume_in_region_pt = `nullptr`
	)

inline

Build mesh, based on a TetgenMeshFactedClosedSurface that specifies the outer boundary of the domain and any number of internal boundaries, specified by TetMeshFacetedSurfaces. Also specify target size for uniform element size. Optionally specify the target element volume in each region.

Definition at line 252 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::build_from_scaffold(), oomph::TetgenMesh< ELEMENT >::build_tetgenio(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, oomph::TetgenMesh< ELEMENT >::Tetgenio_pt, oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt, and oomph::TetgenMesh< ELEMENT >::Use_attributes.

◆ ~TetgenMesh()

template<class ELEMENT >

oomph::TetgenMesh< ELEMENT >::~TetgenMesh ( )

inline

Empty destructor.

Definition at line 688 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, and oomph::TetgenMesh< ELEMENT >::Tetgenio_pt.

Member Function Documentation

◆ build_from_scaffold()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::build_from_scaffold	(	TimeStepper *	time_stepper_pt,
		const bool &	use_attributes
	)

protected

Build mesh from scaffold.

Build unstructured tet mesh based on output from scaffold.

Definition at line 48 of file tetgen_mesh.template.cc.

References oomph::TriangleMesh< ELEMENT >::Tmp_mesh_pt.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), and oomph::TetgenMesh< ELEMENT >::TetgenMesh().

◆ build_tetgenio()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::build_tetgenio	(	TetMeshFacetedSurface *const &	outer_boundary_pt,
		Vector< TetMeshFacetedSurface * > &	internal_surface_pt,
		Vector< double > *const &	target_element_volume_in_region_pt,
		tetgenio &	tetgen_io
	)

inline

Build tetgenio object from the TetMeshFacetedSurfaces.

ALH: This may not be needed

Definition at line 436 of file tetgen_mesh.h.

Referenced by oomph::TetgenMesh< ELEMENT >::TetgenMesh().

◆ deep_copy_of_tetgenio()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::deep_copy_of_tetgenio	(	tetgenio *const &	input_pt,
		tetgenio *&	output_pt
	)

Transfer tetgenio data from the input to the output The output is assumed to have been constructed and "empty".

Definition at line 854 of file tetgen_mesh.template.cc.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), and oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt().

◆ set_deep_copy_tetgenio_pt()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt ( tetgenio *const & tetgenio_pt )

inline

Set the tetgen pointer by a deep copy.

Definition at line 718 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::deep_copy_of_tetgenio(), oomph::TetgenMesh< ELEMENT >::Tetgenio_exists, and oomph::TetgenMesh< ELEMENT >::Tetgenio_pt.

◆ set_mesh_level_time_stepper()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::set_mesh_level_time_stepper	(	TimeStepper *const &	time_stepper_pt,
		const bool &	preserve_existing_data
	)

inline

Overload set_mesh_level_time_stepper so that the stored time stepper now corresponds to the new timestepper.

Definition at line 699 of file tetgen_mesh.h.

◆ setup_reverse_lookup_schemes_for_faceted_surface()

template<class ELEMENT >

void oomph::TetgenMesh< ELEMENT >::setup_reverse_lookup_schemes_for_faceted_surface ( TetMeshFacetedSurface *const & faceted_surface_pt )

protected

Function to setup the reverse look-up schemes.

Helper function to set up the reverse look up scheme for facets. This is used to set up boundary coordinates.

Definition at line 818 of file tetgen_mesh.template.cc.

◆ tetgenio_exists()

template<class ELEMENT >

bool oomph::TetgenMesh< ELEMENT >::tetgenio_exists ( ) const

inline

Boolen defining whether tetgenio object has been built or not.

Definition at line 706 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::Tetgenio_exists.

◆ tetgenio_pt()

template<class ELEMENT >

tetgenio *& oomph::TetgenMesh< ELEMENT >::tetgenio_pt ( )

inline

Access to the triangulateio representation of the mesh.

Definition at line 712 of file tetgen_mesh.h.

References oomph::TetgenMesh< ELEMENT >::Tetgenio_pt.

Member Data Documentation

◆ Tetgenio_exists

template<class ELEMENT >

bool oomph::TetgenMesh< ELEMENT >::Tetgenio_exists

protected

Boolean to indicate whether a tetgenio representation of the mesh exists.

Definition at line 749 of file tetgen_mesh.h.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt(), oomph::TetgenMesh< ELEMENT >::tetgenio_exists(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), and oomph::TetgenMesh< ELEMENT >::~TetgenMesh().

◆ Tetgenio_pt

template<class ELEMENT >

tetgenio* oomph::TetgenMesh< ELEMENT >::Tetgenio_pt

protected

Tetgen representation of mesh.

Definition at line 752 of file tetgen_mesh.h.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), oomph::TetgenMesh< ELEMENT >::set_deep_copy_tetgenio_pt(), oomph::TetgenMesh< ELEMENT >::tetgenio_pt(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), and oomph::TetgenMesh< ELEMENT >::~TetgenMesh().

◆ Tmp_mesh_pt

template<class ELEMENT >

TetgenScaffoldMesh* oomph::TetgenMesh< ELEMENT >::Tmp_mesh_pt

protected

Temporary scaffold mesh.

Definition at line 745 of file tetgen_mesh.h.

Referenced by oomph::RefineableTetgenMesh< ELEMENT >::RefineableTetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), and oomph::TetgenMesh< ELEMENT >::TetgenMesh().

◆ Use_attributes

template<class ELEMENT >

bool oomph::TetgenMesh< ELEMENT >::Use_attributes

protected

Boolean flag to indicate whether to use attributes or not (required for multidomain meshes)

Definition at line 756 of file tetgen_mesh.h.

Referenced by oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), oomph::TetgenMesh< ELEMENT >::TetgenMesh(), and oomph::TetgenMesh< ELEMENT >::TetgenMesh().
